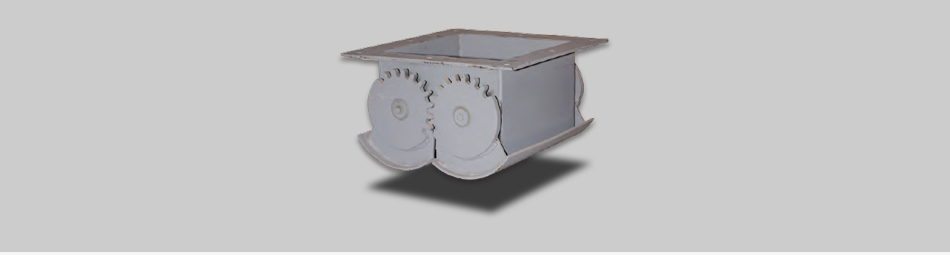

Built for strength and longevity, Assinck Clam Gates are designed to meet the demands of rugged material handling environments. Manufactured with heavy-duty flanges, flame-cut gears, and sealed-for-life bearings, these gates ensure smooth operation and reduced maintenance.
Available in multiple sizes (12″, 14″, 15″, 16″, 18″, 20″, 24″, and 36″), each unit can be configured with your preferred bolt-hole pattern for a secure fit. Whether used for precise material flow control or under hoppers and bins, our Clam Gates offer durability and performance.
Ordering Note: Please provide the inside dimensions when requesting a quote to ensure accurate sizing.
Gear Types

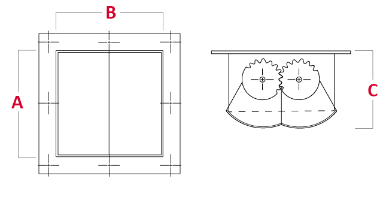

| Size | A | B | C |
|---|---|---|---|
| 12″ | 12″ | 12″ | 9 3/4″ |
| 14″ | 14″ | 14″ | 10 3/4″ |
| 15″ | 15″ | 15″ | 11″ |
| 16″ | 16″ | 16″ | 11 3/8″ |
| 18″ | 18″ | 18″ | 13″ |
| 20″ | 20″ | 20″ | 14 1/4″ |
| 24″ | 24″ | 24″ | 17 3/4″ |
| 36″ | 36″ | 36″ | 26 1/2″ |
